KATA Industrial Valves · Since 1998

The product range

Six valve families plus a specialized cryogenic program — covering every major industrial valve category, from 1/2″ to 180″, Class 150 to 4500. One factory, one quality standard.

Families6 + cryogenic

Size range1/2″–180″

PressureClass 150–4500

Temp. range−196 °C to +560 °C

ActuationManual · gear · electric · pneumatic

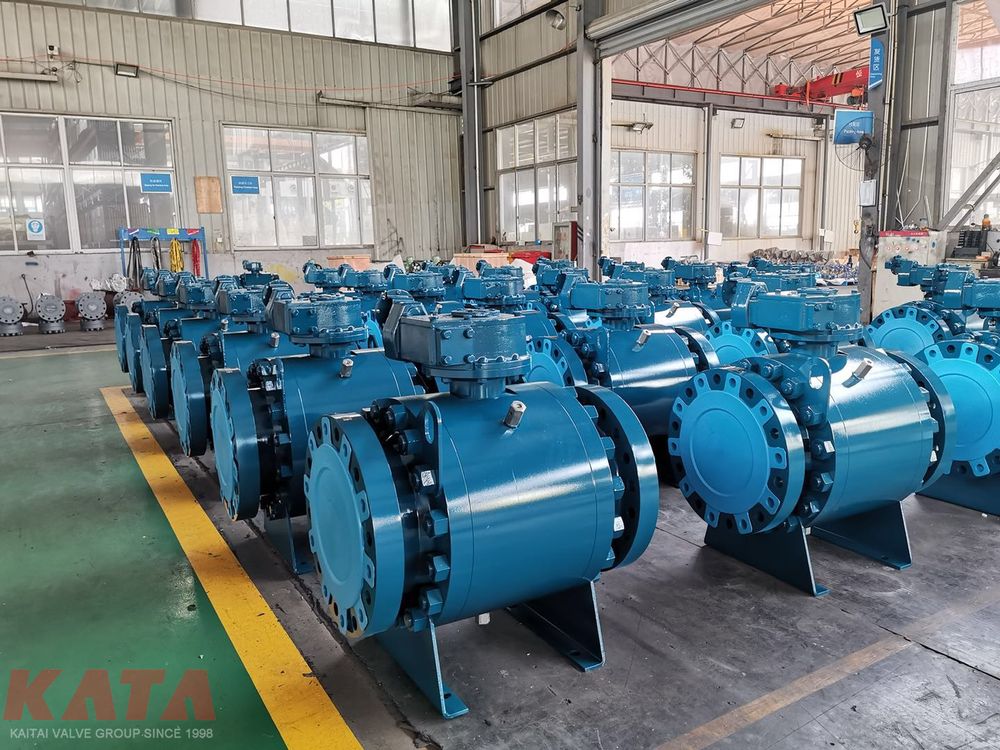

01 / 06 — Ball valves

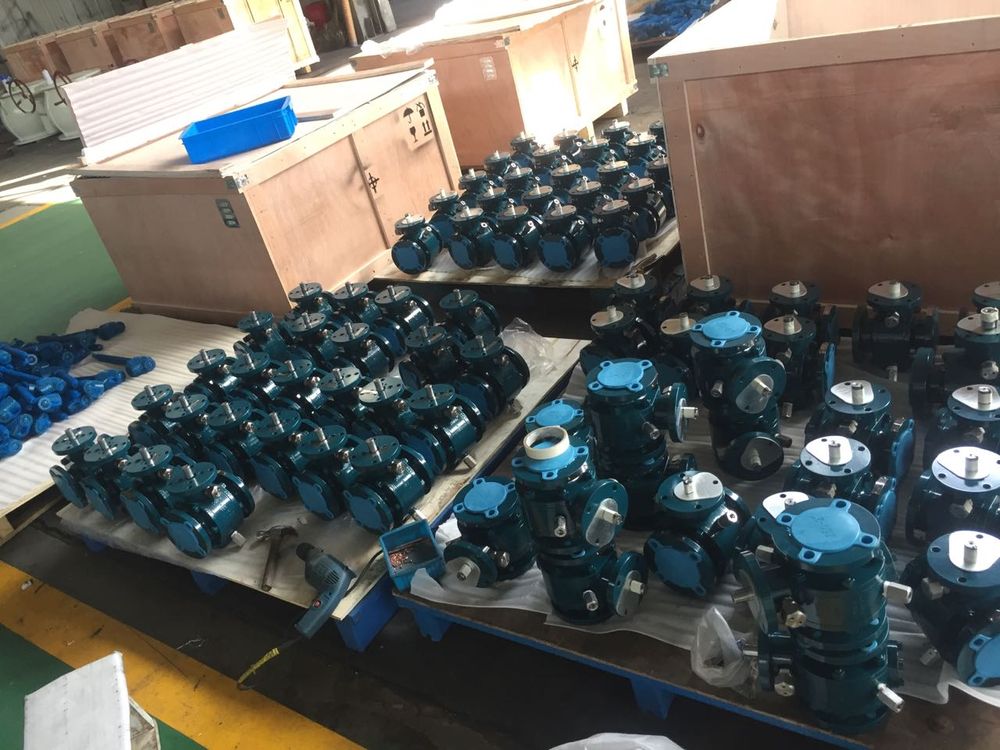

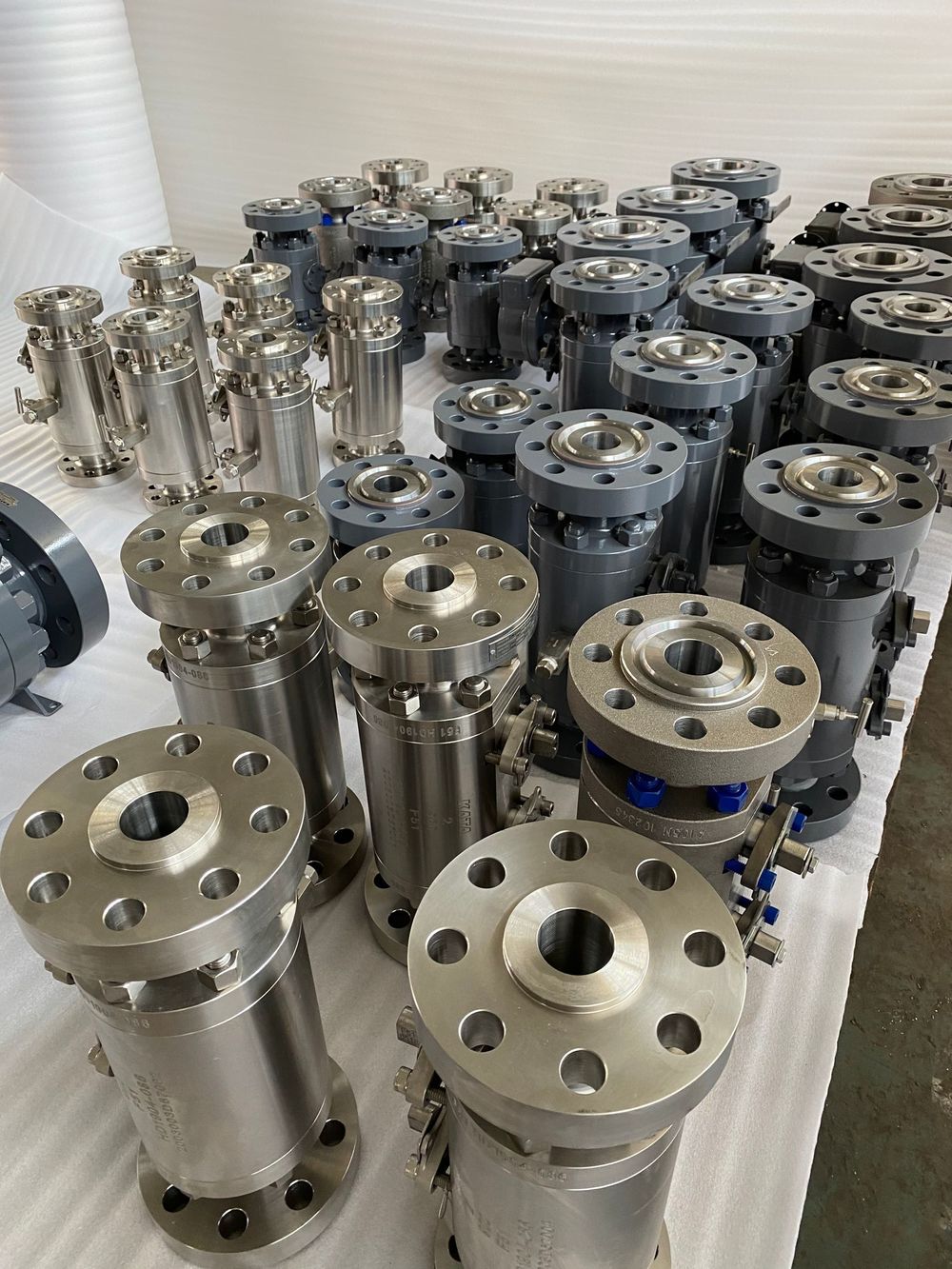

Ball Valve

Floating · Trunnion · Top Entry · Fully Welded

Isolation (on/off) duty across oil & gas, petrochemical, water and general industry — fire-safe and anti-static for hydrocarbon service.

Size / Class

1/2″–56″ · Class 150–2500

Designs

Floating 1/2″–12″ · Trunnion 2″–56″ · Top Entry 2″–24″ · Fully Welded 2″–48″ — all Class 150–2500

Standards

API 6D · API 608 · ASME B16.34 · BS 5351

Features

Fire-safe per API 607 · anti-static · blow-out-proof stem · ISO 5211 mounting · DBB / DIB options · metal hard-seat option

Materials

WCB · LCB · CF8/CF8M · CF3/CF3M · A105 · LF2 · F304/F316 · duplex & alloy options

Actuation

Manual · worm gear · electric · pneumatic

02 / 06 — Gate valves

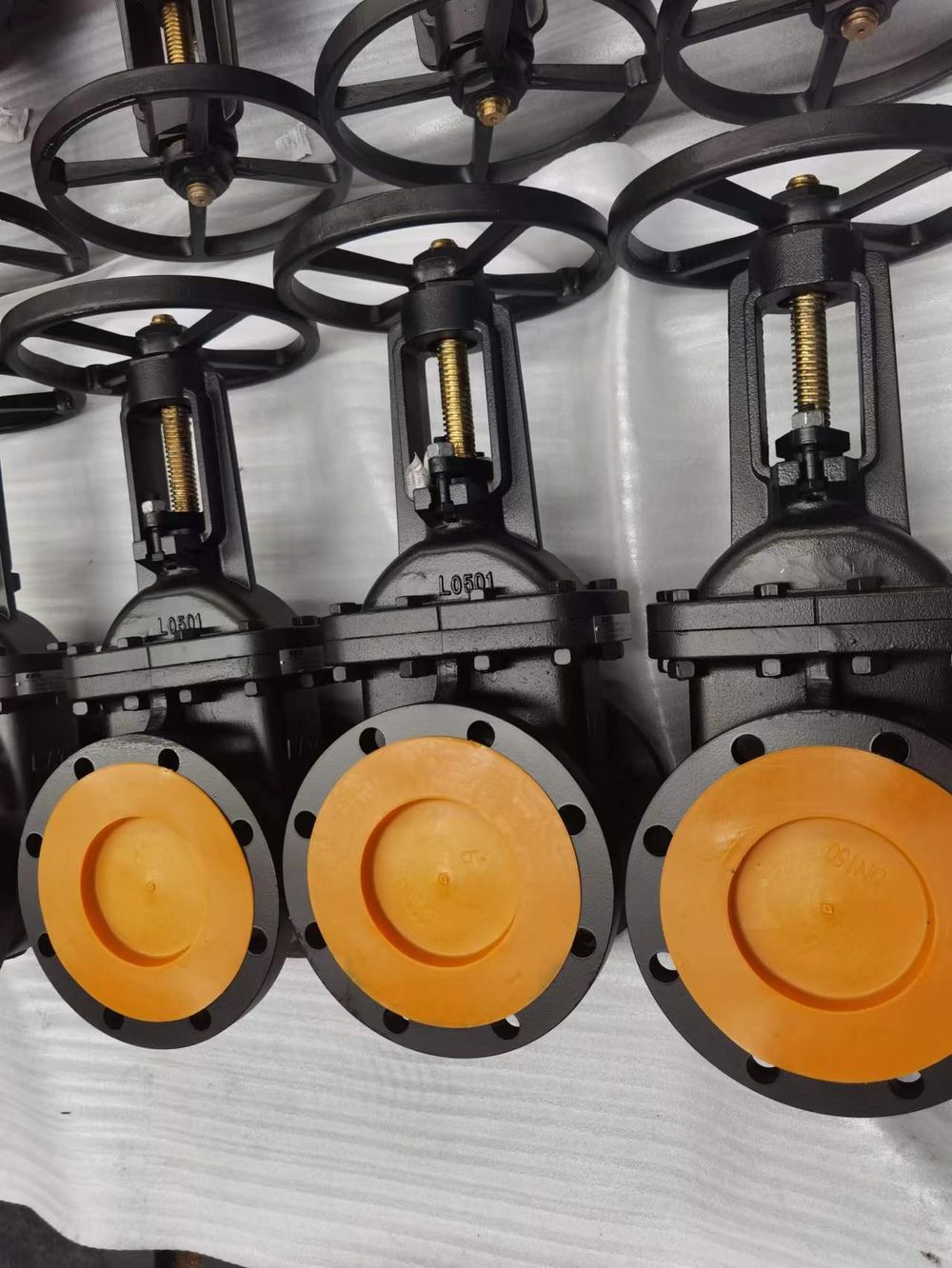

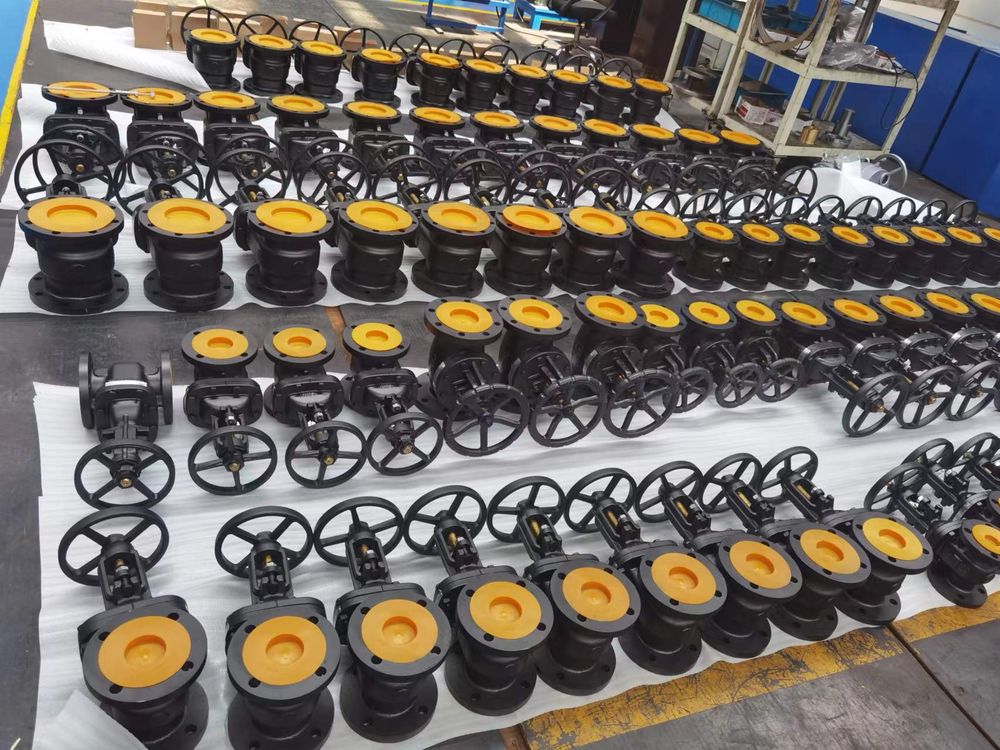

Gate Valve

Cast Steel · Cryogenic · Pressure Seal · Forged · Slab · Knife

Petroleum, natural gas, petrochemical and process industries — full open/close isolation; not for throttling.

Size / Class

1/2″–56″ · Class 150–4500 / PN10–16

Designs

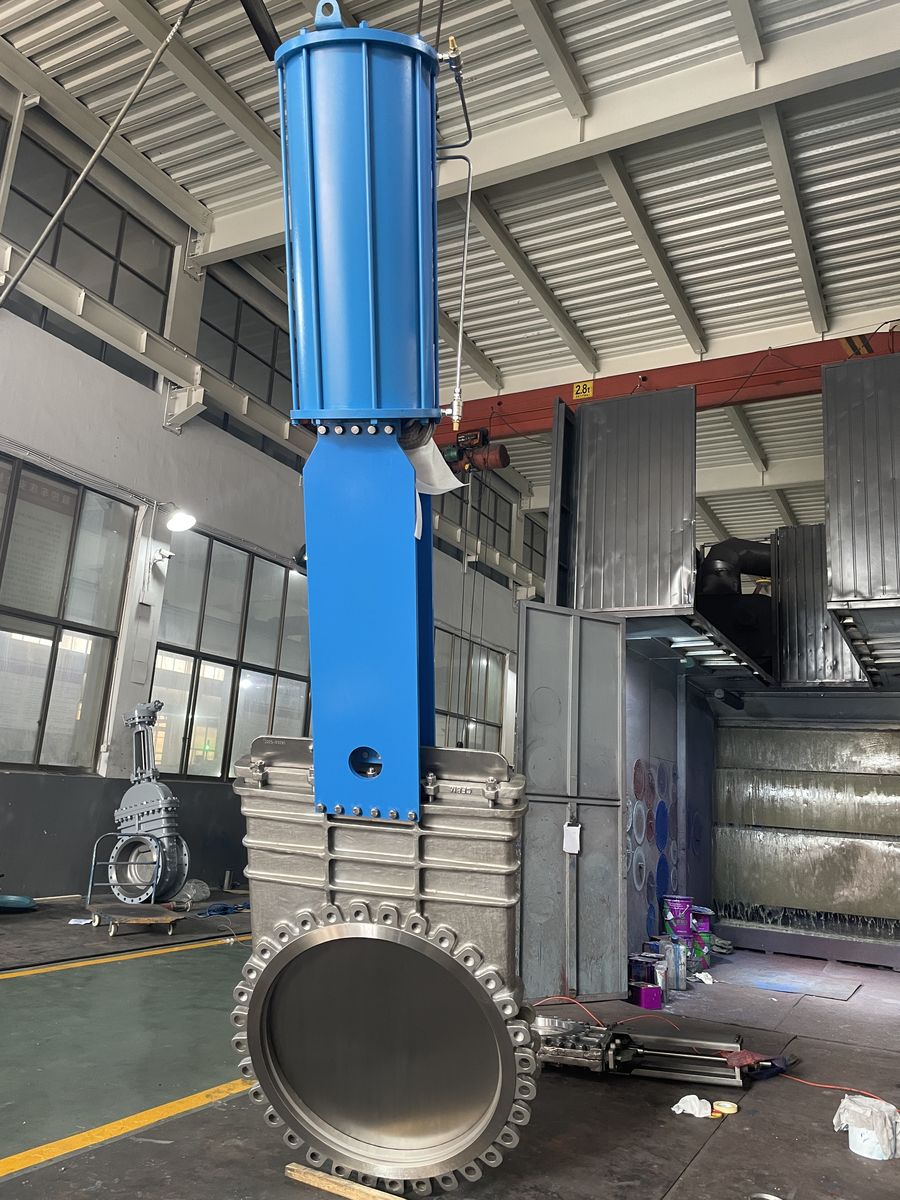

Cast steel 1/2″–56″ · Cryogenic 2″–24″ (to −196 °C) · Pressure seal 2″–24″ · Forged 1/2″–4″ (CL150–4500) · Slab 2″–48″ · Knife 2″–32″

Standards

API 600 · API 602 · API 6D · BS 1414 · BS 5352 · ASME B16.34

Features

Full-port, OS&Y · pressure-seal bonnet for high temperature · cryogenic extended bonnet · flexible wedge / parallel slide options · Stellite® hardfacing

Materials

WCB · WC6/WC9 · C5/C12 · CF8/CF8M · A105 · LF2 · stainless

Actuation

Handwheel · gearbox · electric · pneumatic · hydraulic

03 / 06 — Globe valves

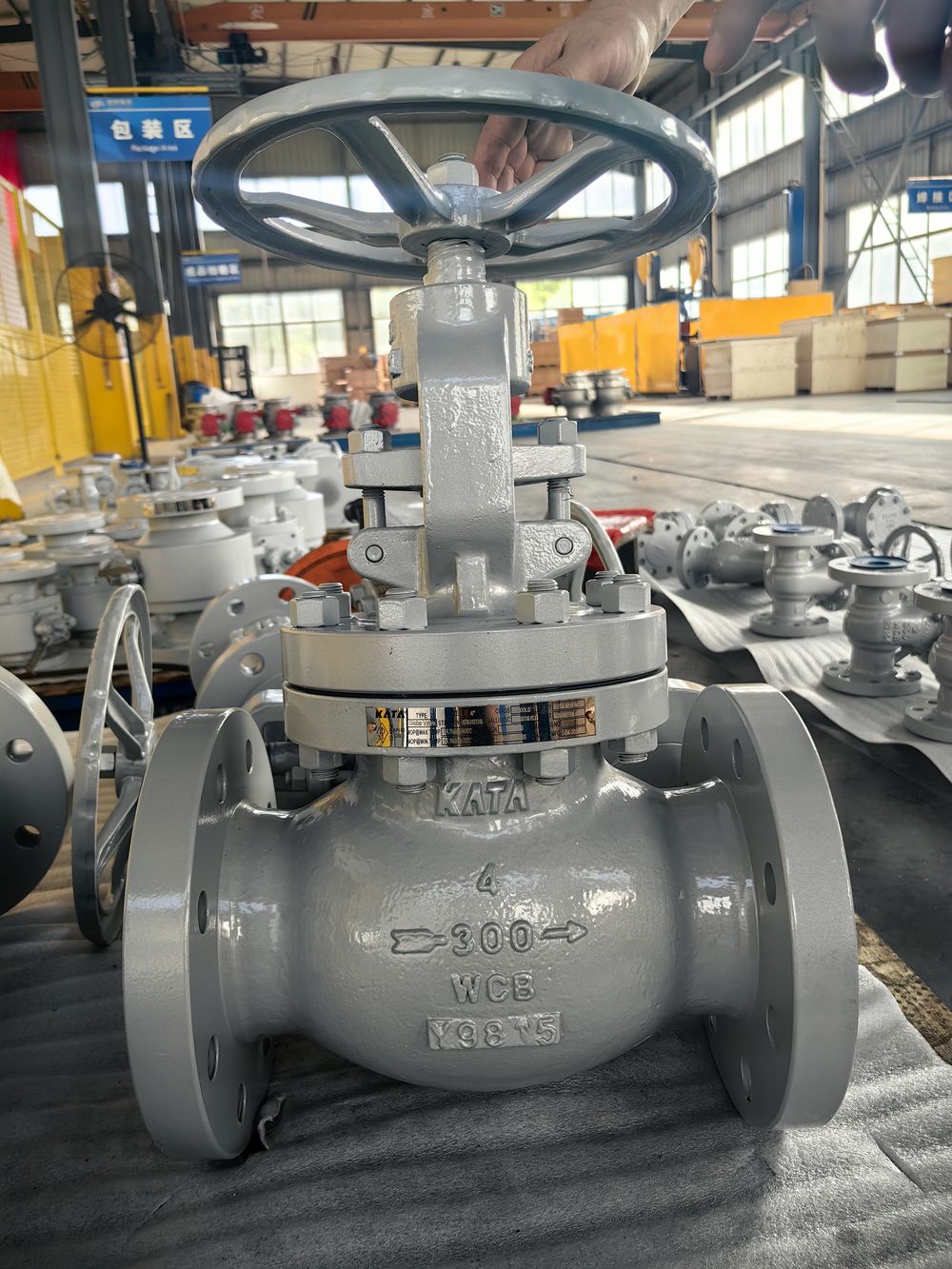

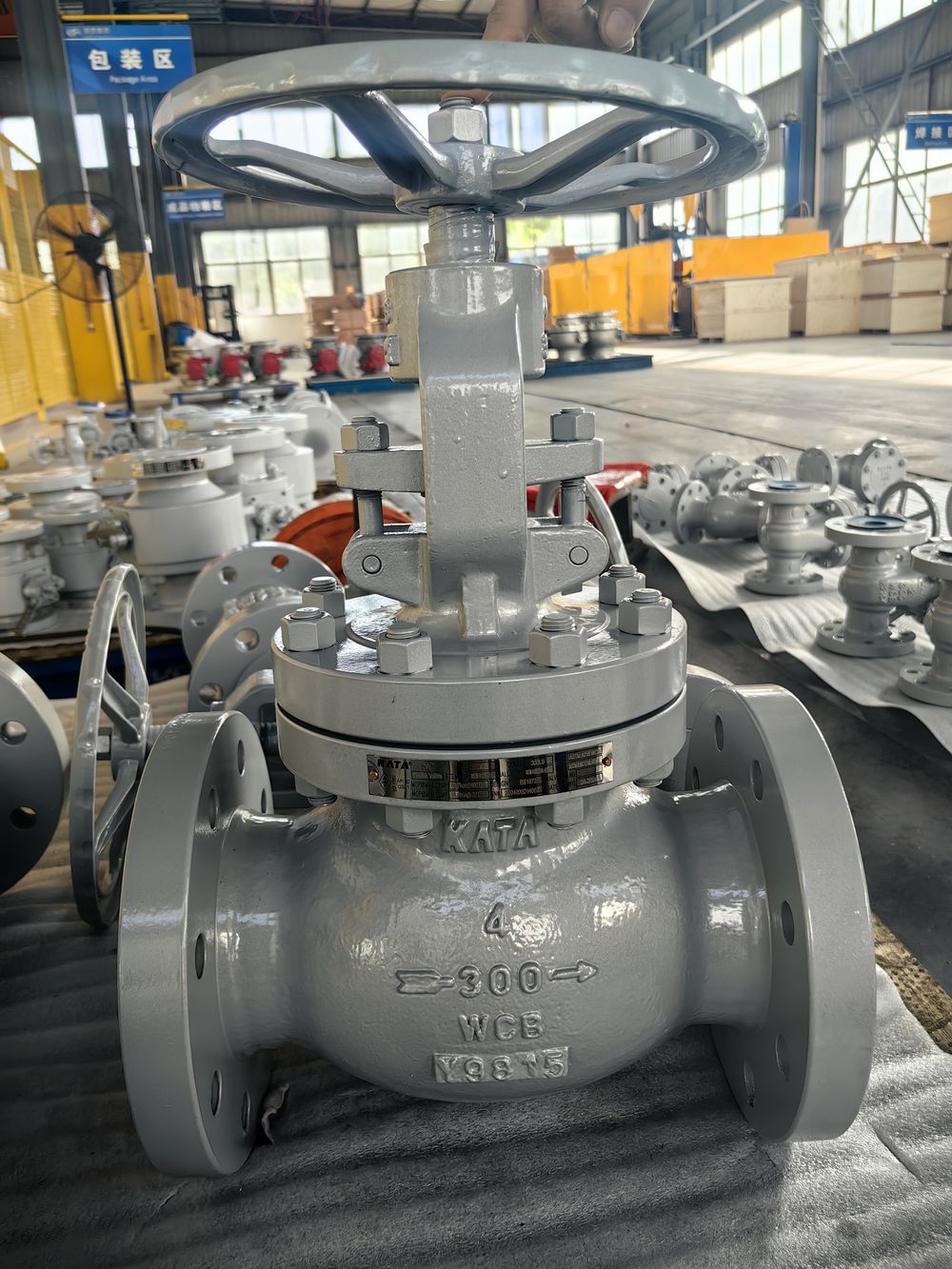

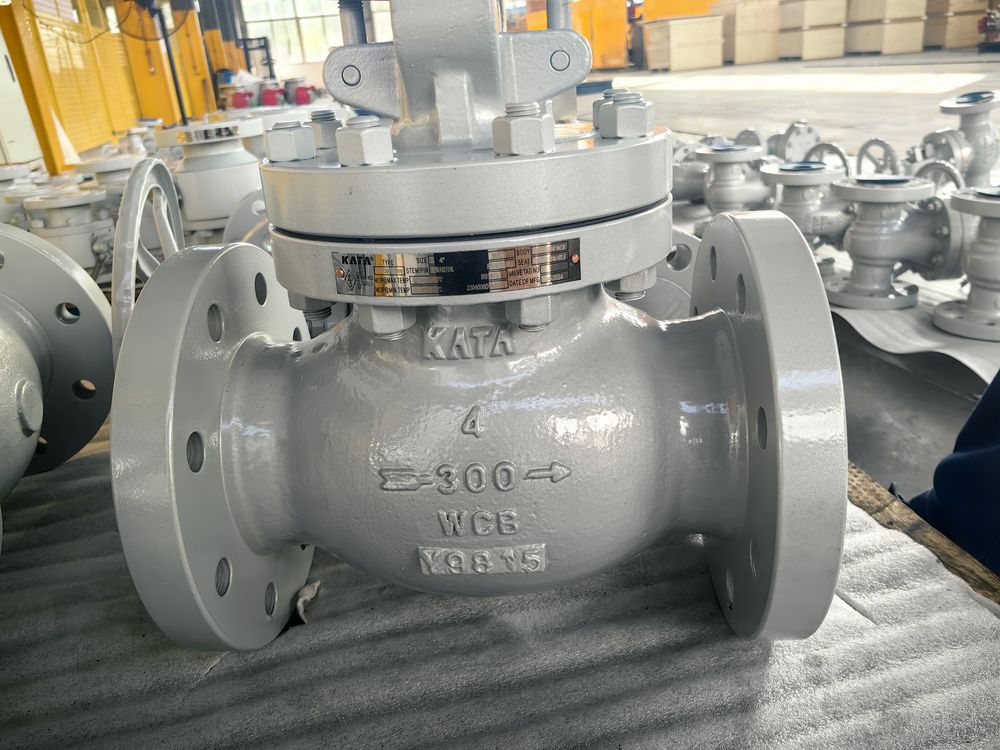

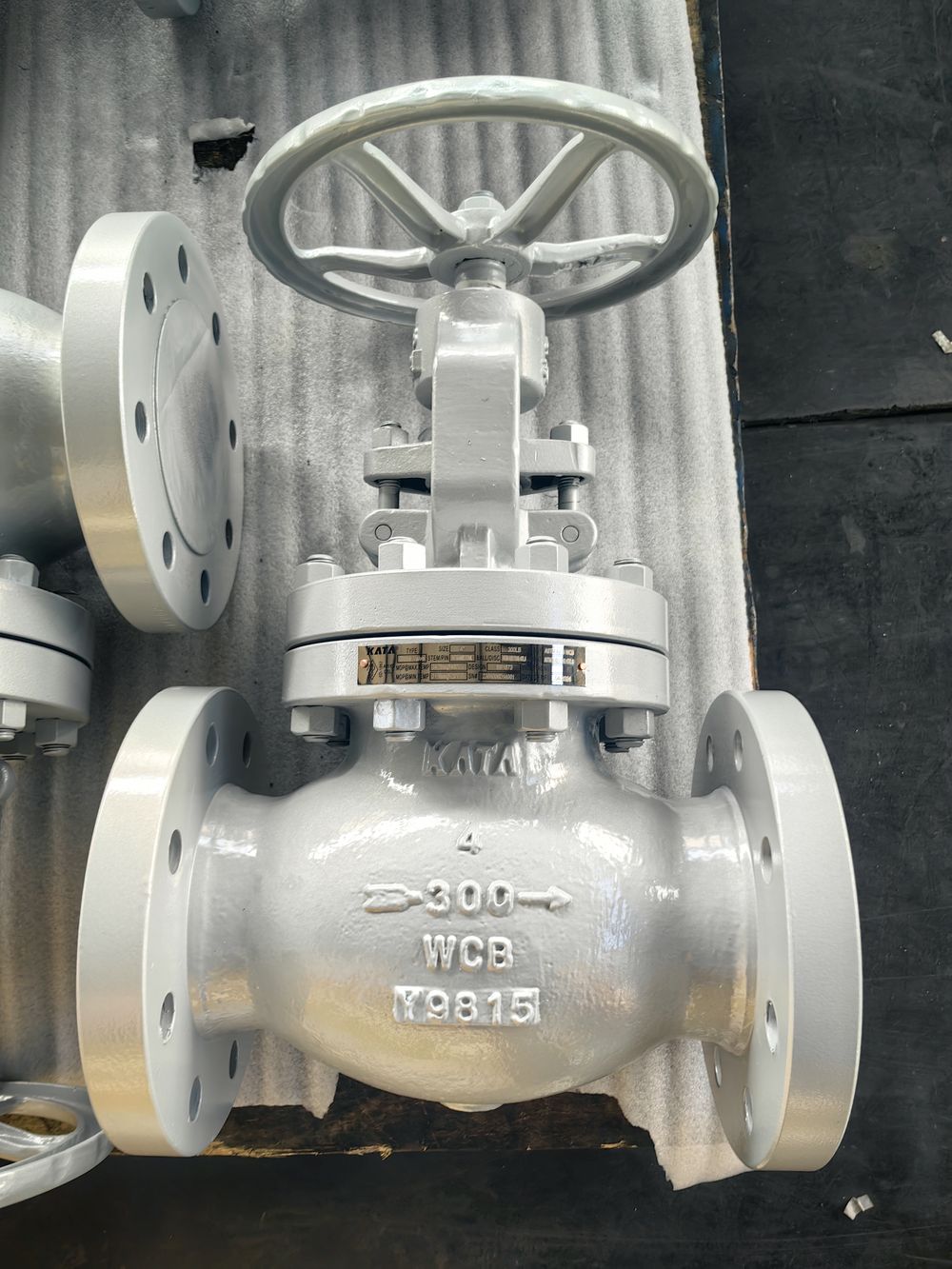

Globe Valve

Cast Steel · Pressure Seal · Bellow Seal · Forged

Throttling & flow adjustment plus on/off — pressure-seal type for high-temperature power plants; bellow-seal type where zero fugitive emissions matter.

Size / Class

1/2″–24″ · Class 150–2500

Designs

Cast steel 2″–20″ · Pressure seal 1/2″–24″ · Bellow seal 1/2″–18″ · Forged 1/2″–2″ (CL800–1500)

Standards

API 600 · BS 1873 · ASME B16.34 · API 6D

Features

Throttling & flow adjustment plus on-off · pressure seal for high-temperature power service · bellow seal for zero fugitive emissions · renewable seat rings

Materials

WCB · WC6/WC9 · C5/C12 · CF8/CF8M · A105 · A890 GR4A duplex

Actuation

Handwheel · worm gear · gearbox · electric · pneumatic

04 / 06 — Check valves

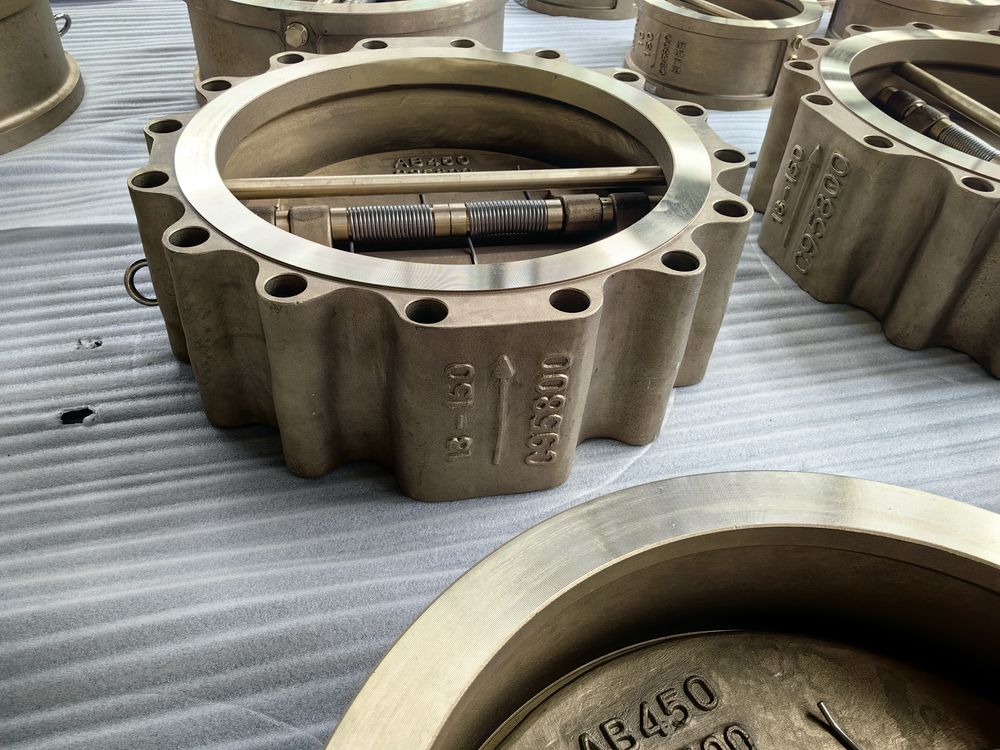

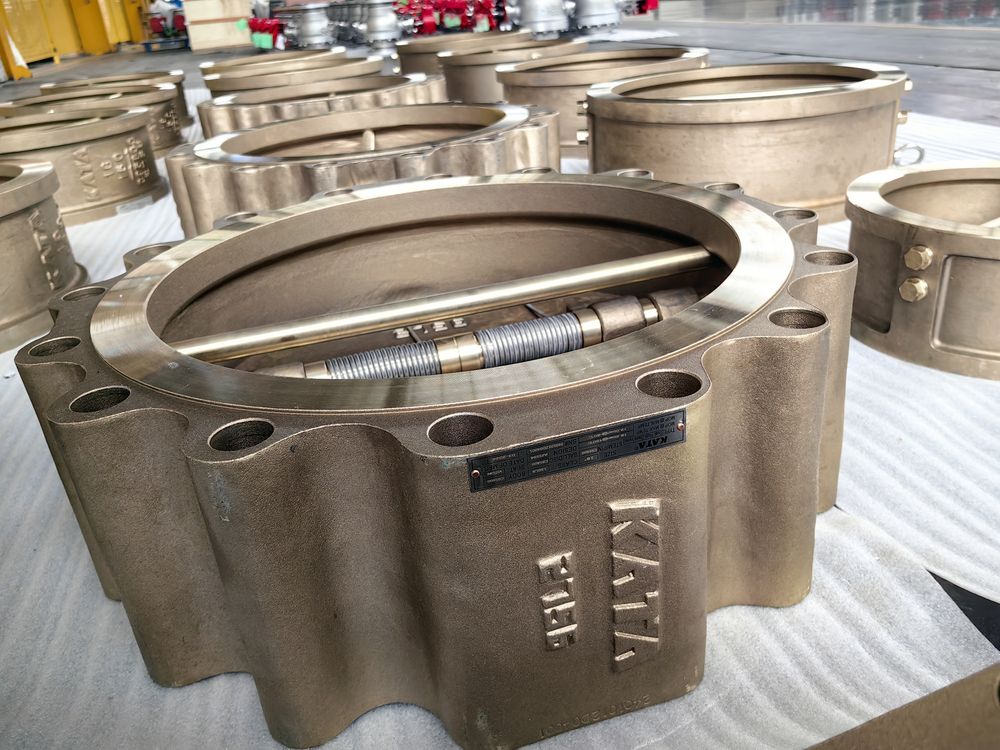

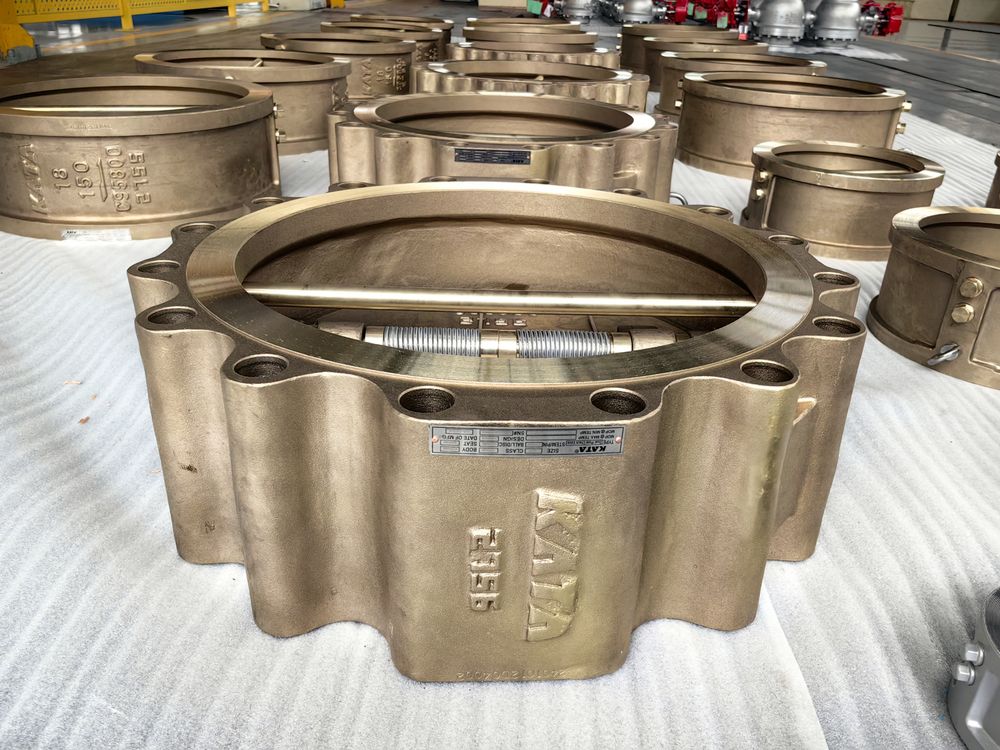

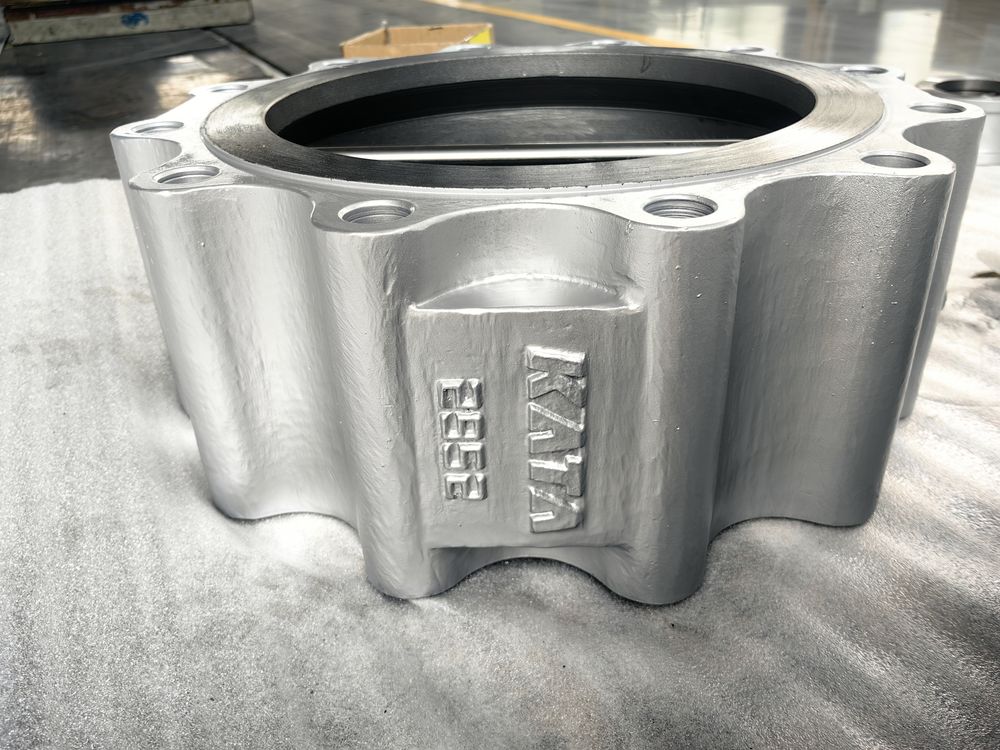

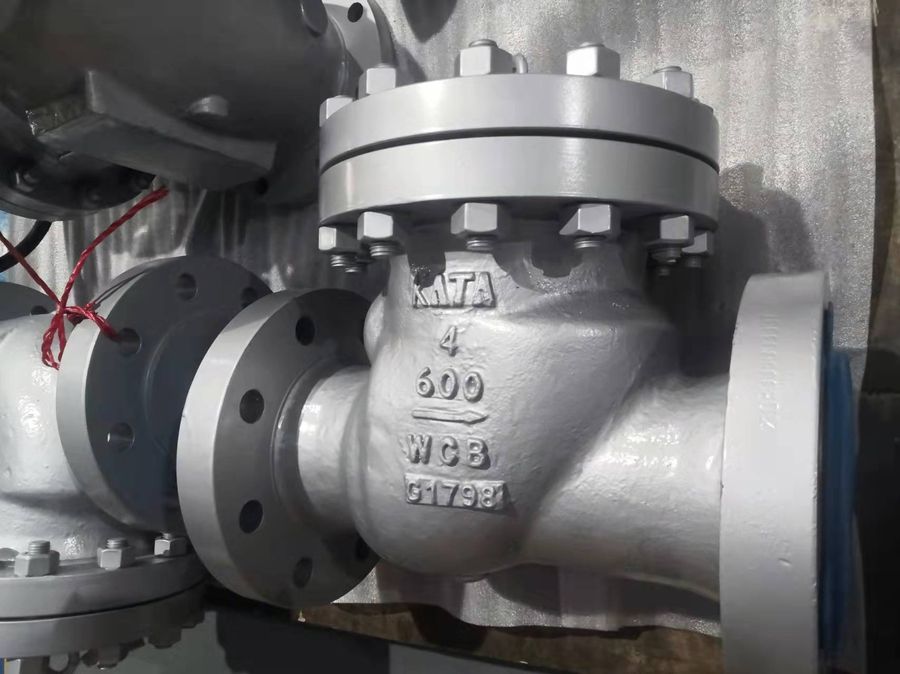

Check Valve

Swing · Forged · Dual Plate · Lift / Piston

Backflow prevention, pump & compressor protection, vessel discharge lines.

Size / Class

1/2″–42″ · Class 150–2500

Designs

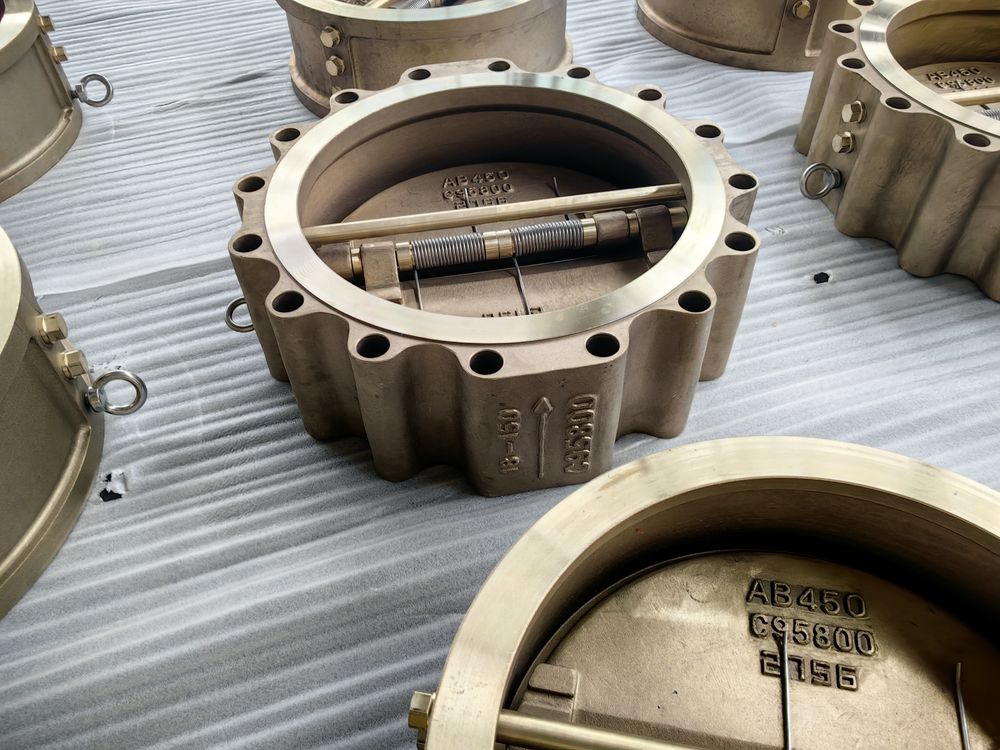

Swing 1/2″–42″ (−196 to +560 °C) · Forged 1/2″–2″ · Dual plate 2″–24″ (to 1600 mm) · Lift / piston 2″–36″

Standards

BS 1868 · API 594 · API 6D · BS 5352

Features

Non-slam dual-plate design · damping-cylinder option on swing type · rapid closing with low water hammer · cryogenic & high-temperature capable

Ends

RF · RTJ · butt weld

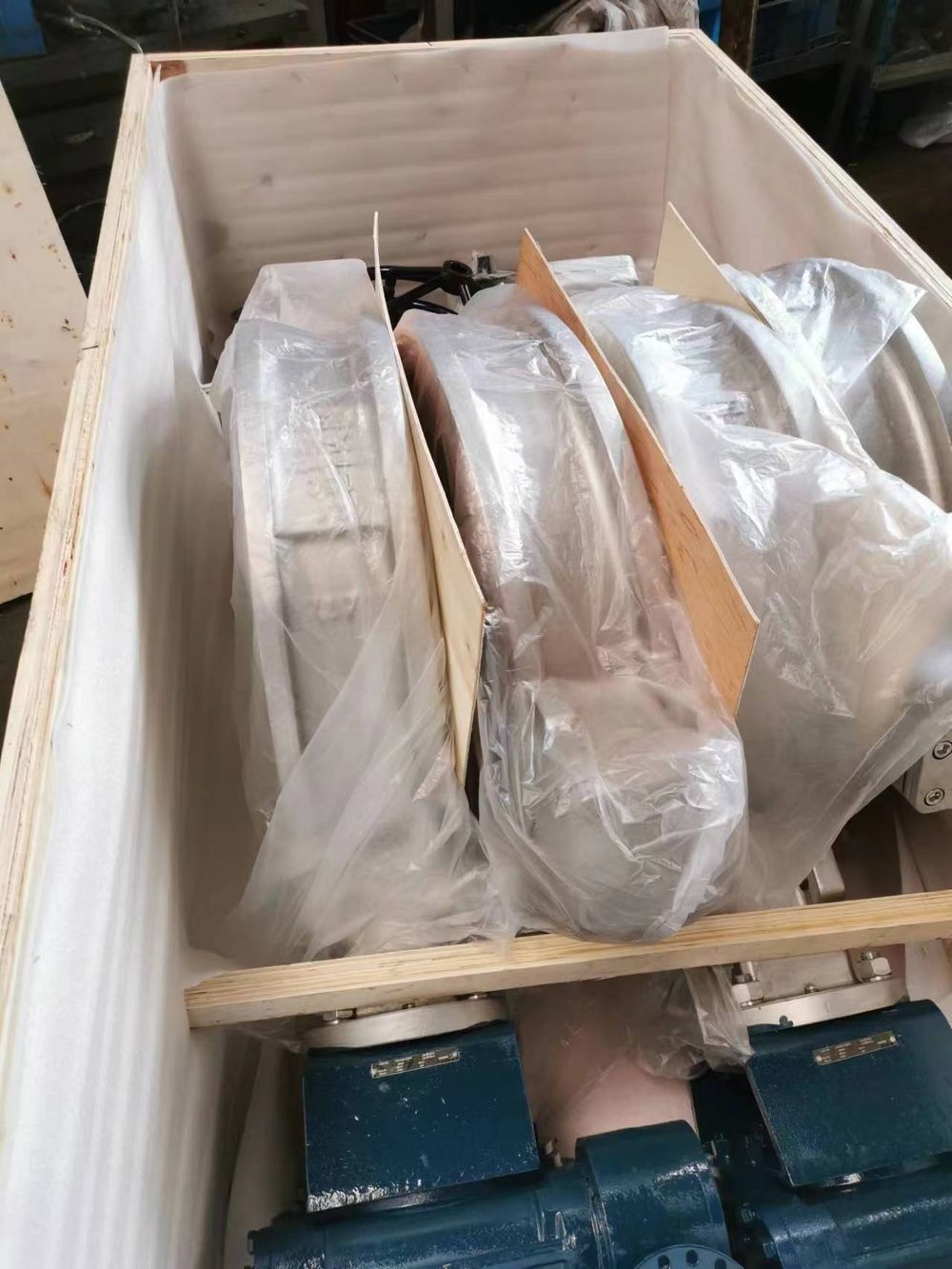

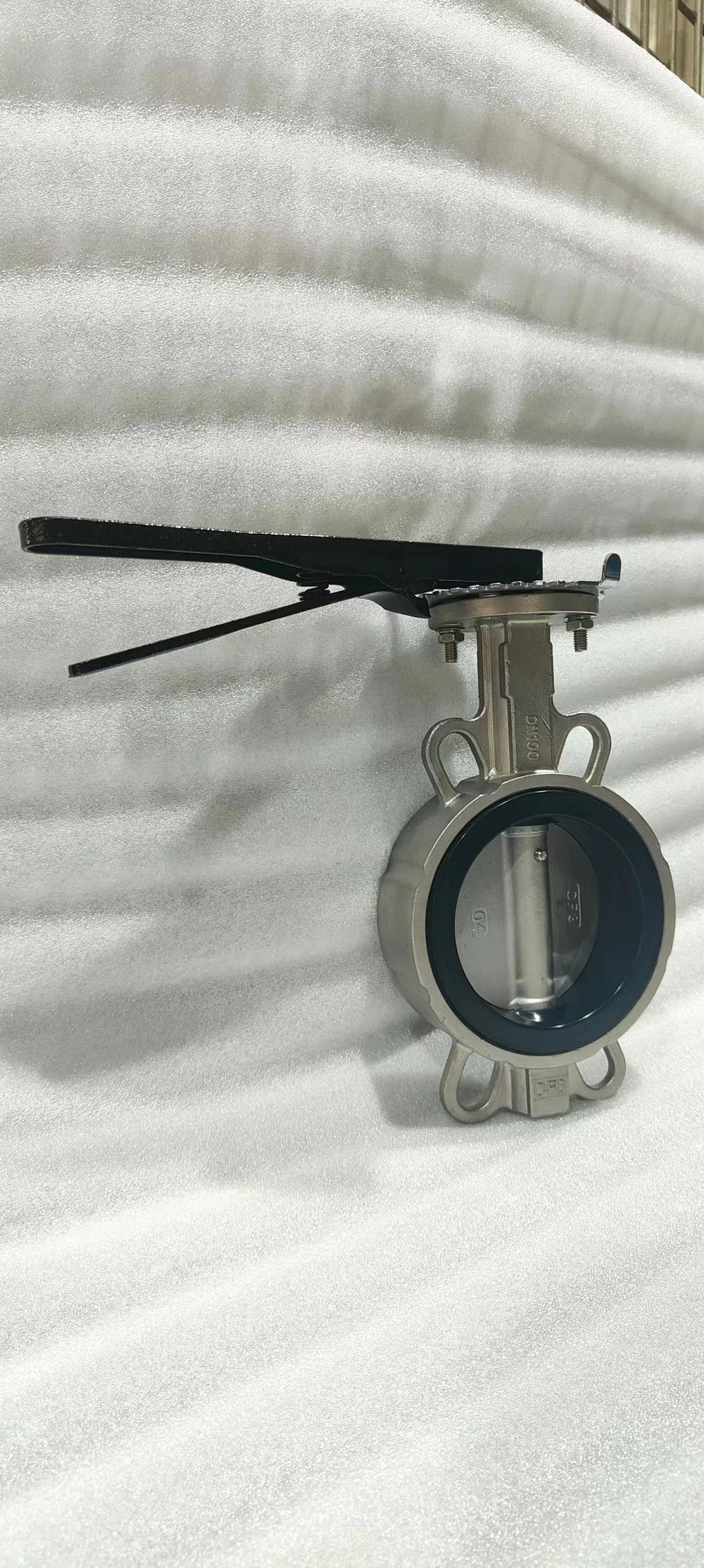

05 / 06 — Butterfly valves

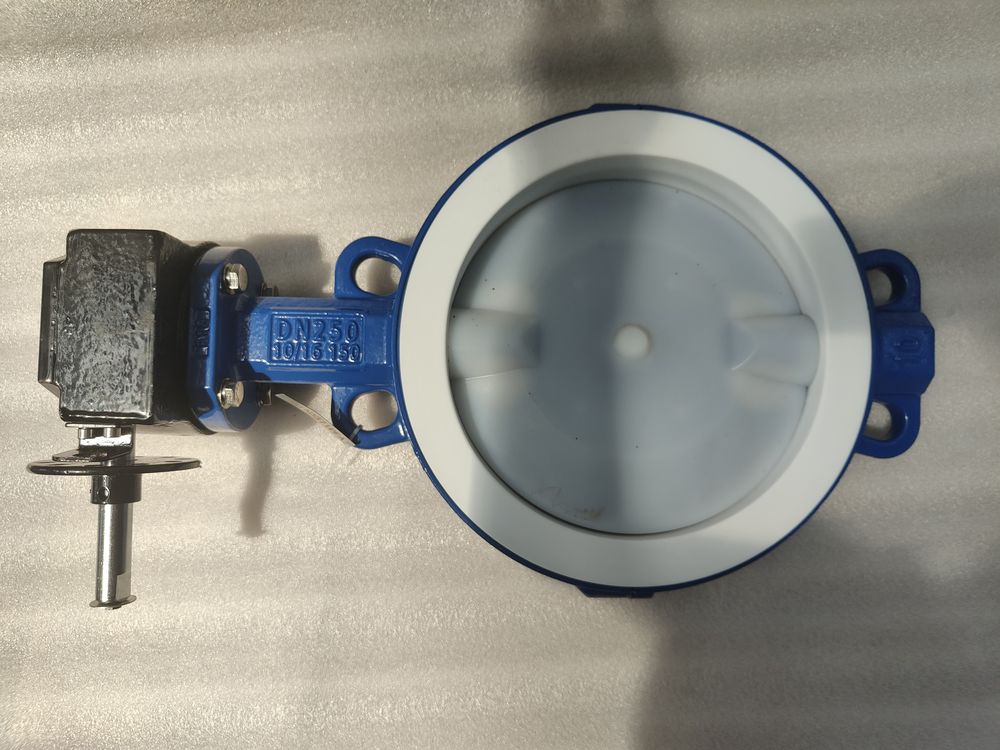

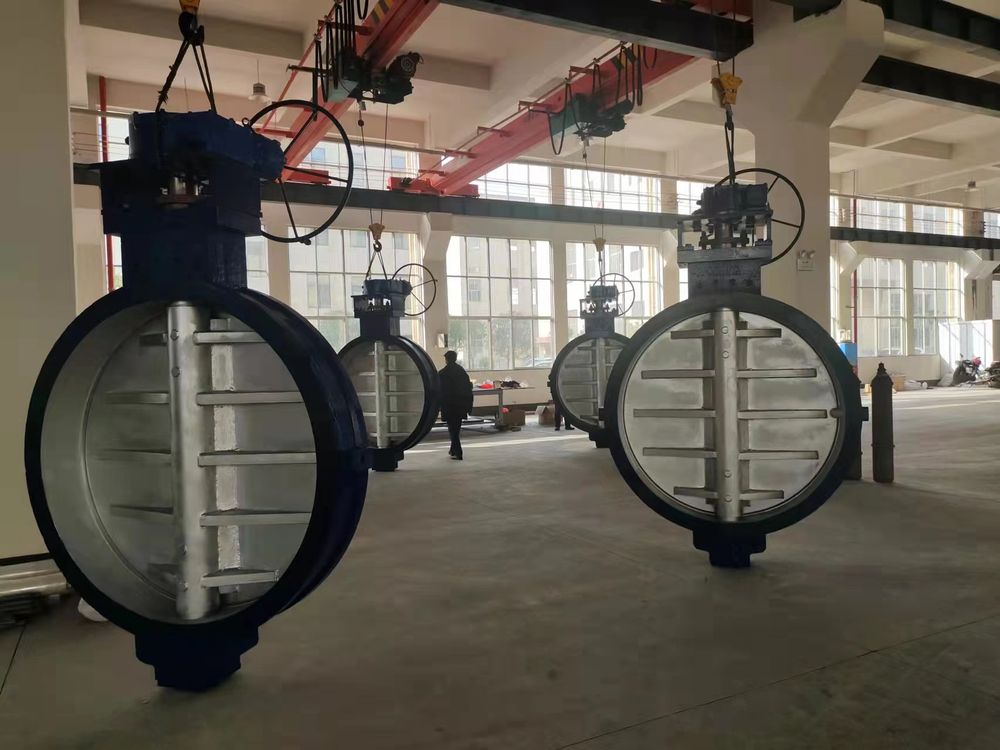

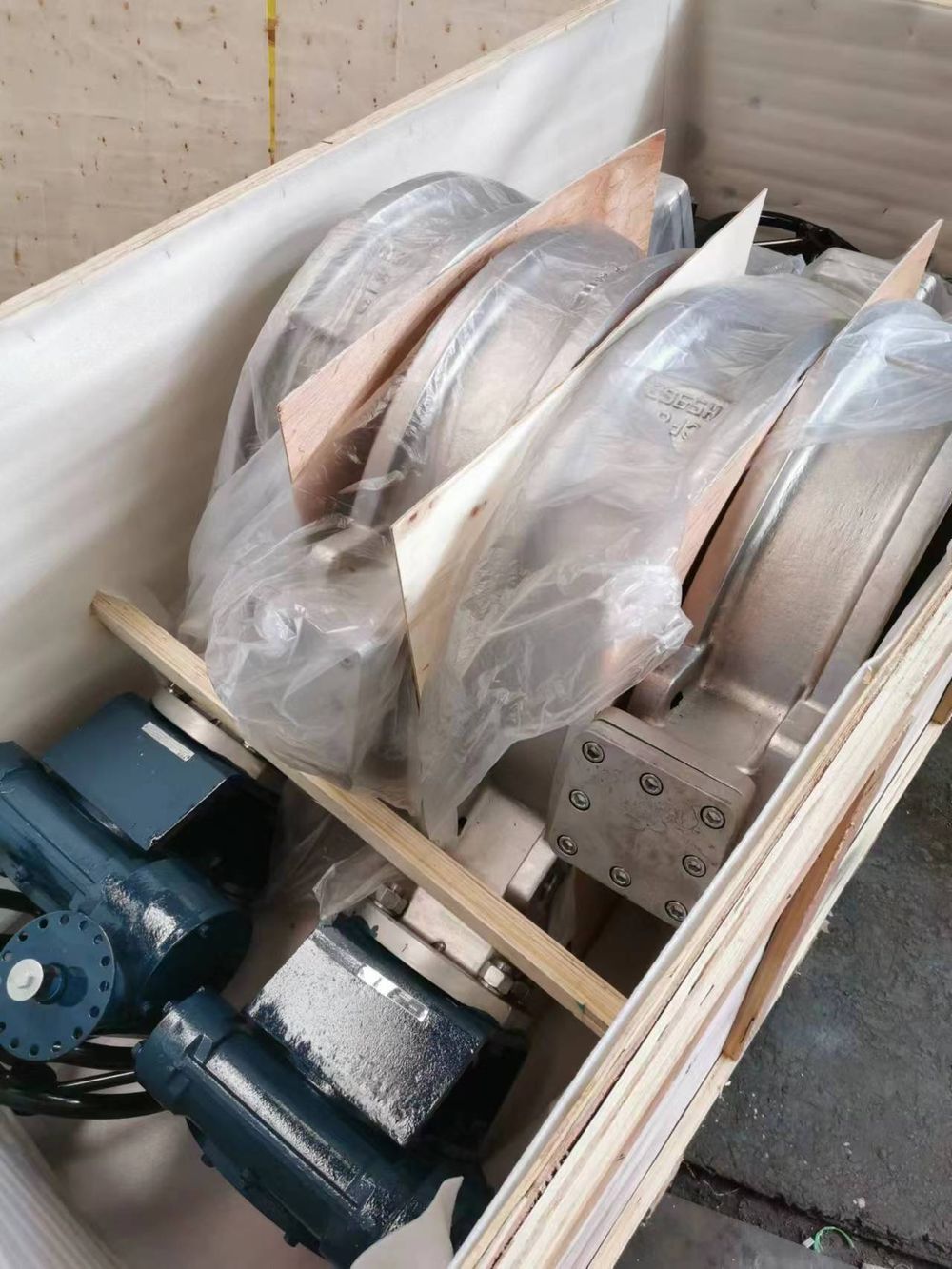

Butterfly Valve

Wafer Soft Seal · Triple Eccentric

Water & wastewater, oilfield, agriculture and mining (soft seal) — triple eccentric for critical, high-performance service with flow adjustment.

Size / Class

2″–180″ · Class 150–600 / PN10–100

Designs

Wafer soft seal 2″–48″ (zero leakage) · Triple eccentric 2″–180″ (−46 to +200 °C)

Standards

API 609 · EN 593 · AWWA C504 · ASME B16.34

Features

Bi-directional sealing · soft-seat leakage ANSI B16.104 Class VI · triple-eccentric metal seat for critical service · wafer, lug or flanged body

Materials

GG25 · GGG40 · A126 B · WCB · LCB · CF8/CF8M

Actuation

Lever · gear · pneumatic · electric · hydraulic

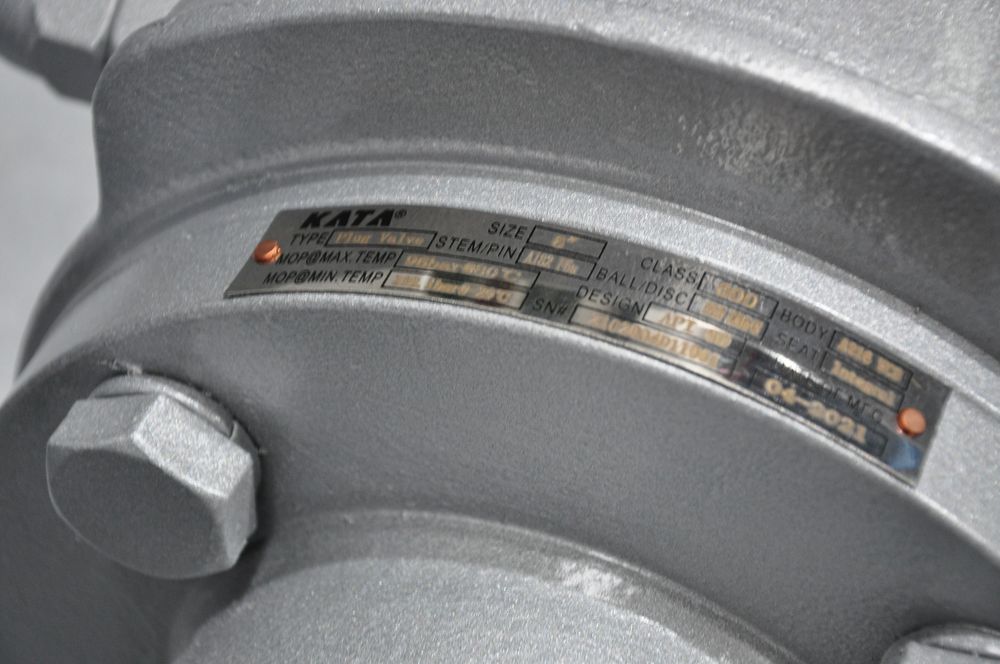

06 / 06 — Plug valves

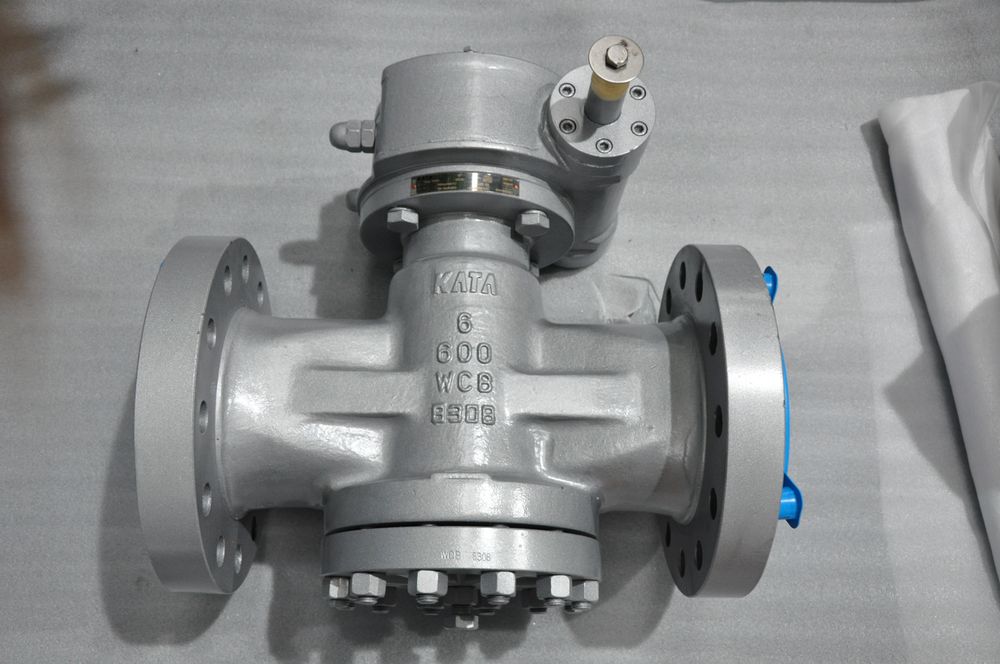

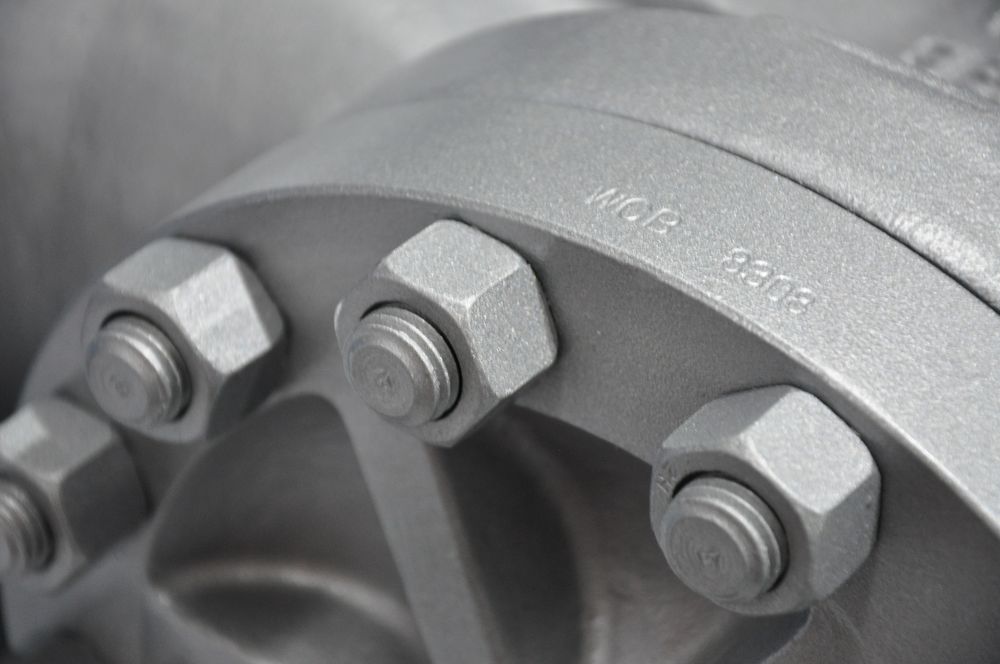

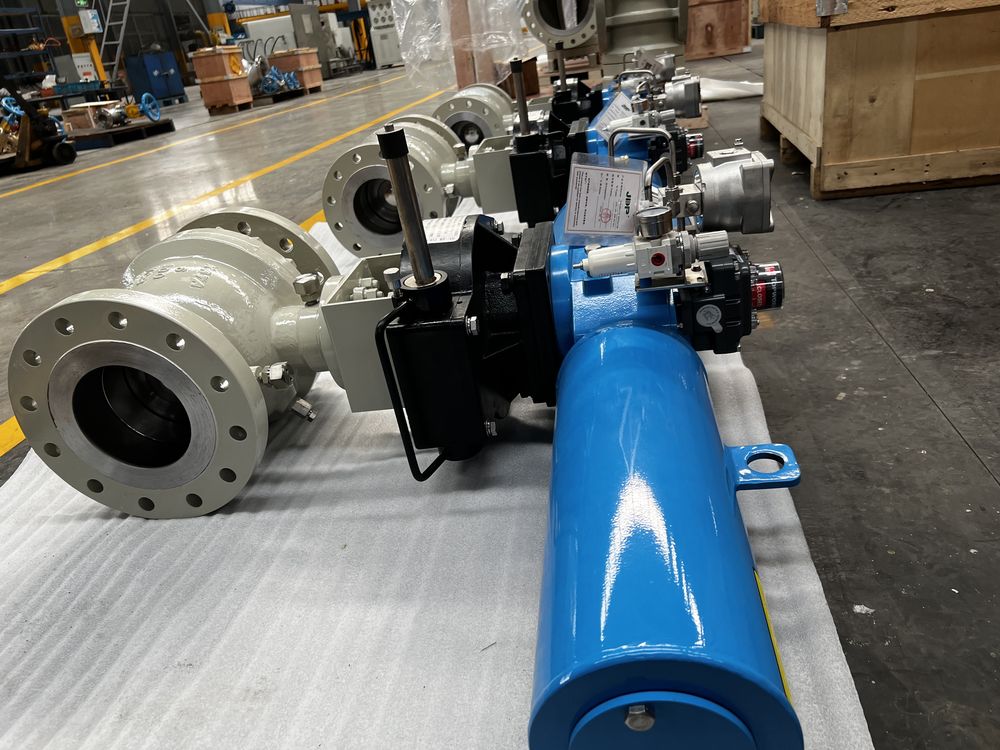

Plug Valve

Lift Plug · Sleeve Soft Seat · Lubricated

Petroleum, chemical, pharmaceutical, fertilizer and power industries — where no-cavity, bi-directional sealing matters.

Size / Class

1/2″–42″ · Class 150–1500

Designs

Lift plug 1/2″–42″ · Sleeve soft seat (CL150–900) · Inverted pressure-balance lubricated 2″–28″

Standards

API 599 · API 6D · ANSI B16.10 / B16.5 / B16.25

Features

Lift-then-turn operation — no seat abrasion · no cavity for media accumulation · self-cleaning metal edge · seal-grease injection option · bi-directional

Service

−29 °C to +550 °C

Specialty — Cold service

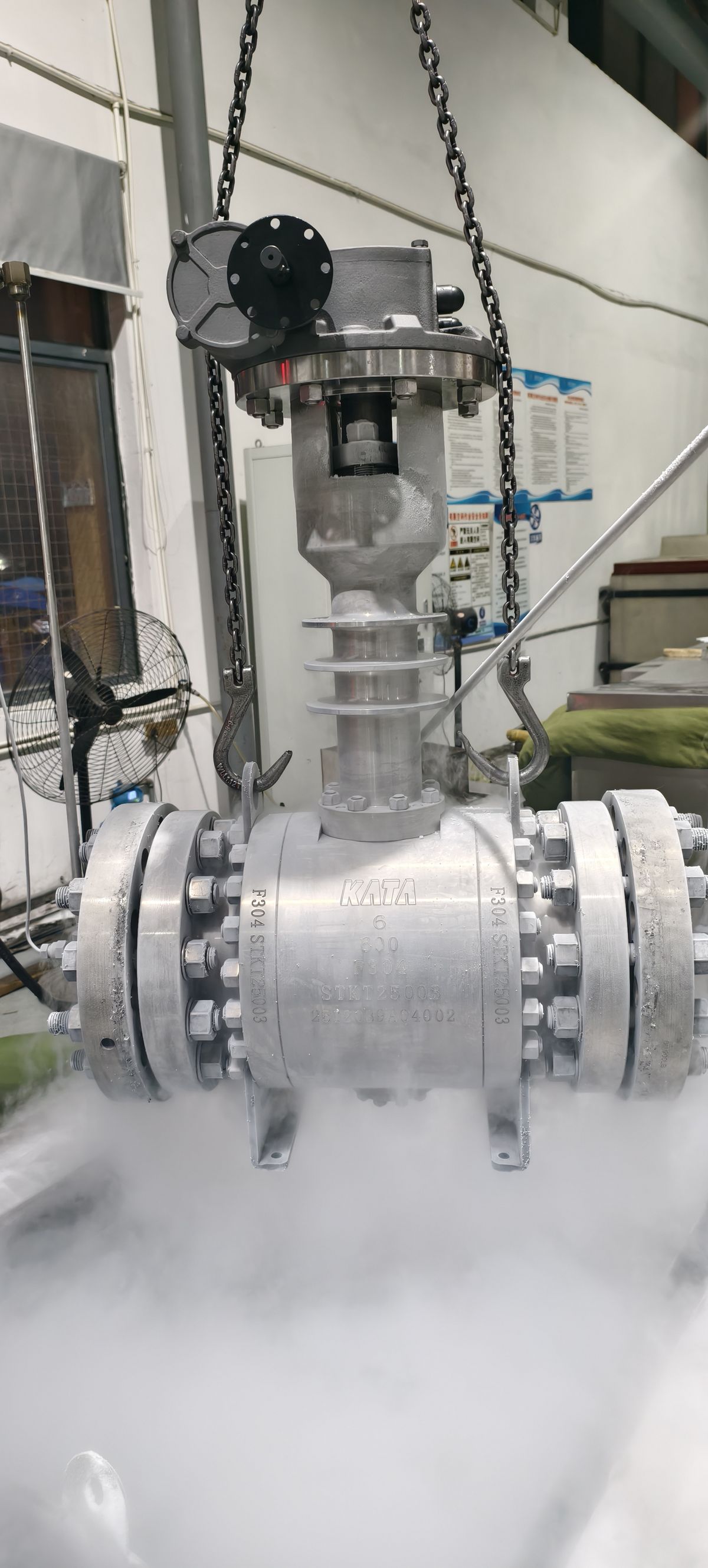

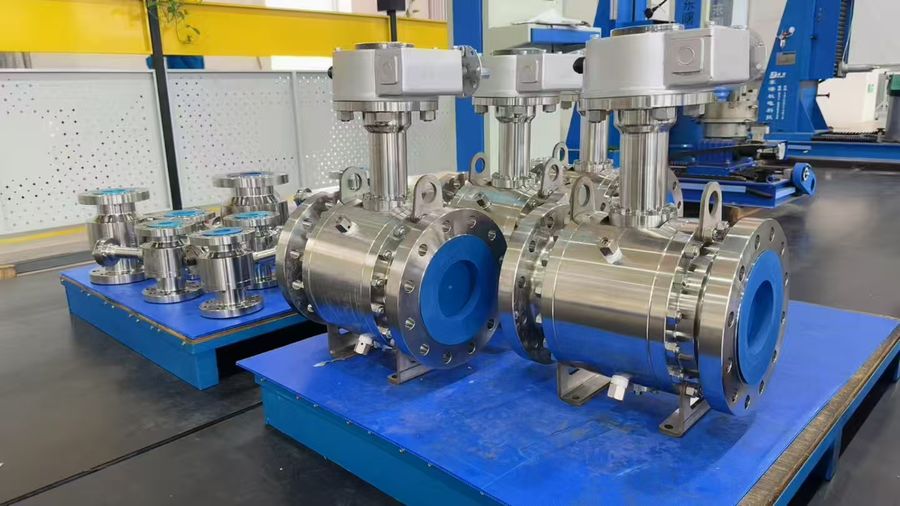

Cryogenic valves, −196 °C

Ball & gate · LNG & low-temperature service

KATA's differentiator: cryogenic ball and gate valves engineered, assembled and tested for −196 °C — DNV type-approved, with a dedicated liquid-nitrogen laboratory behind every unit.

Approval

DNV Type Approval TAP000036B — valid to 26 Apr 2031

Range

Floating ball 1/2″–6″ · Trunnion ball 6″–16″ · Gate valves for LNG & low-temperature lines — Class 150–2500, −196 °C

Testing

−196 °C cryogenic testing per BS 6364 · helium leak test · shell & seat tested at operating temperature

Standards

BS 6364 · ISO 28921-1 · API 598 · ASME B16.34 · ISO 15848-1 · MSS SP-134 · SHELL SPE 77/200 & 77/312

Seat materials

PCTFE (−196 to +125 °C) · PTFE / RPTFE · PEEK · SS TFM1600

Ends & actuation

Flanged · welded · one flanged + one welded · manual / worm gear / electric / pneumatic

LNG value chain Air separation Petrochemical & gas Hydrogen & new energy Marine & fuel gas Industrial gases

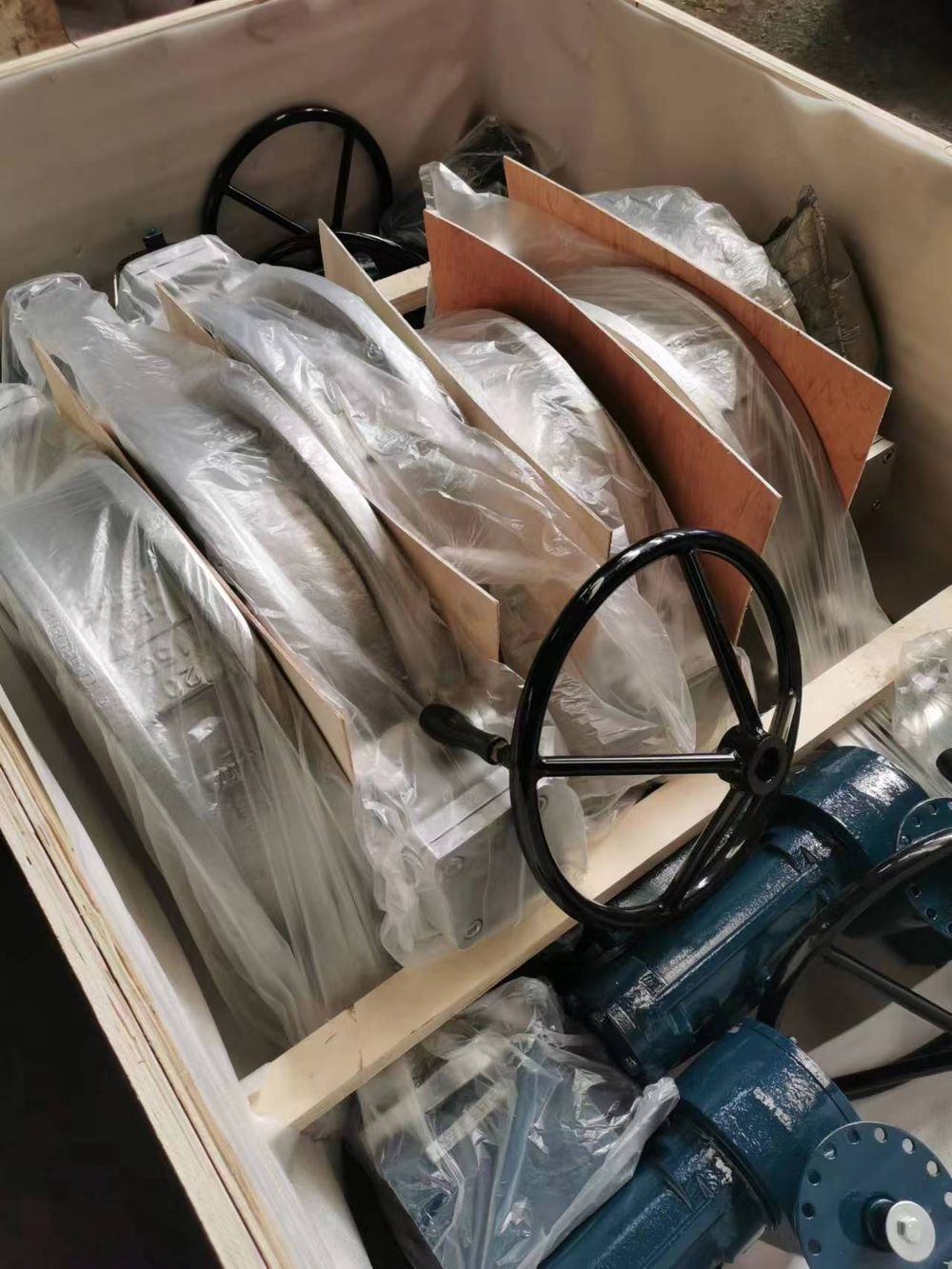

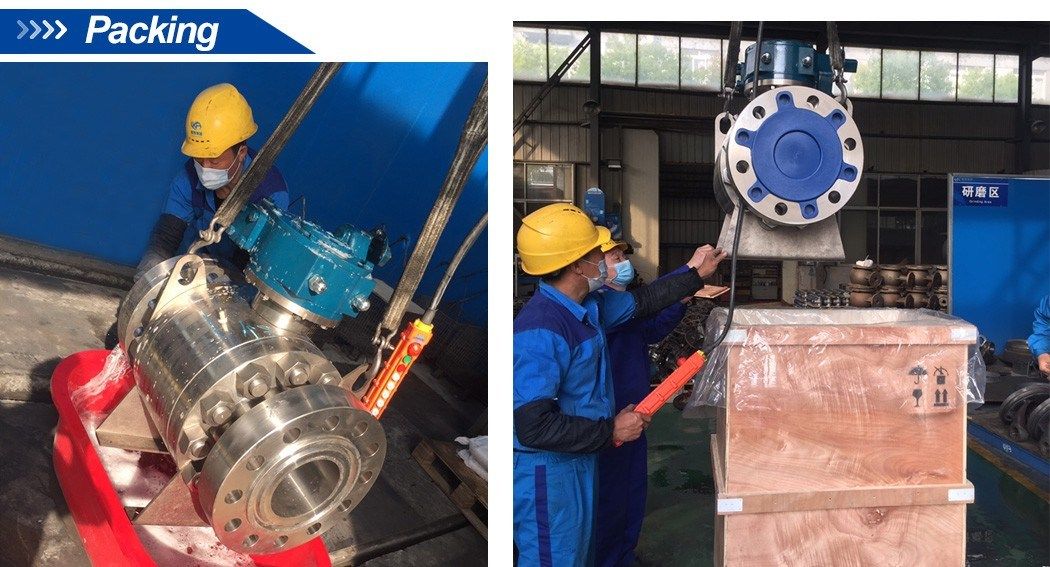

From the KATA workshop

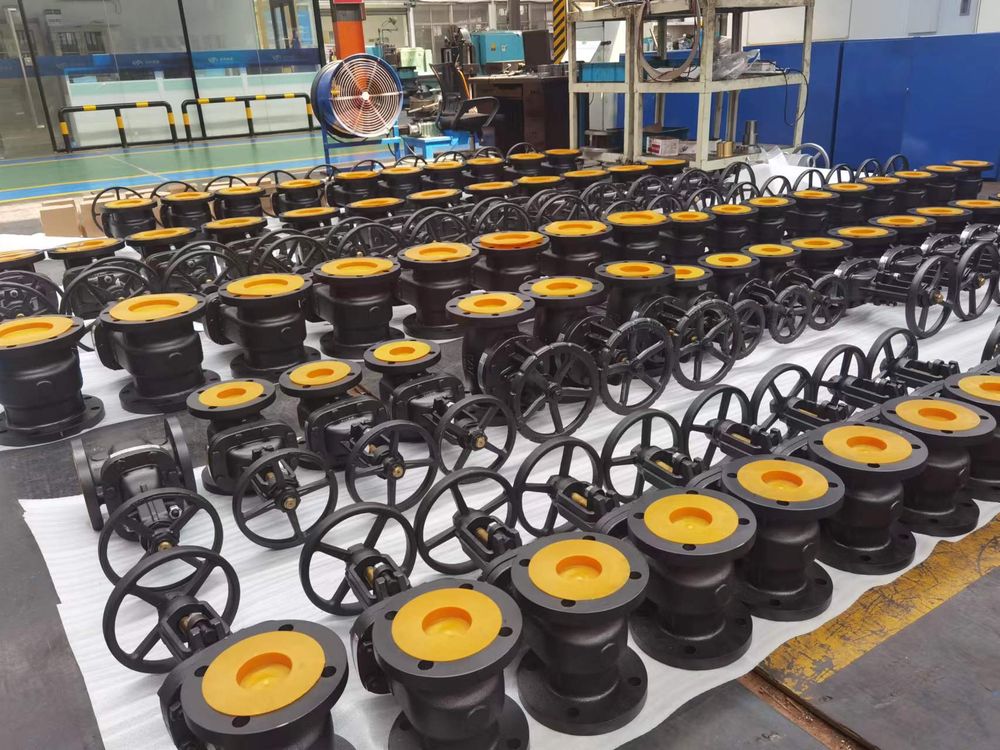

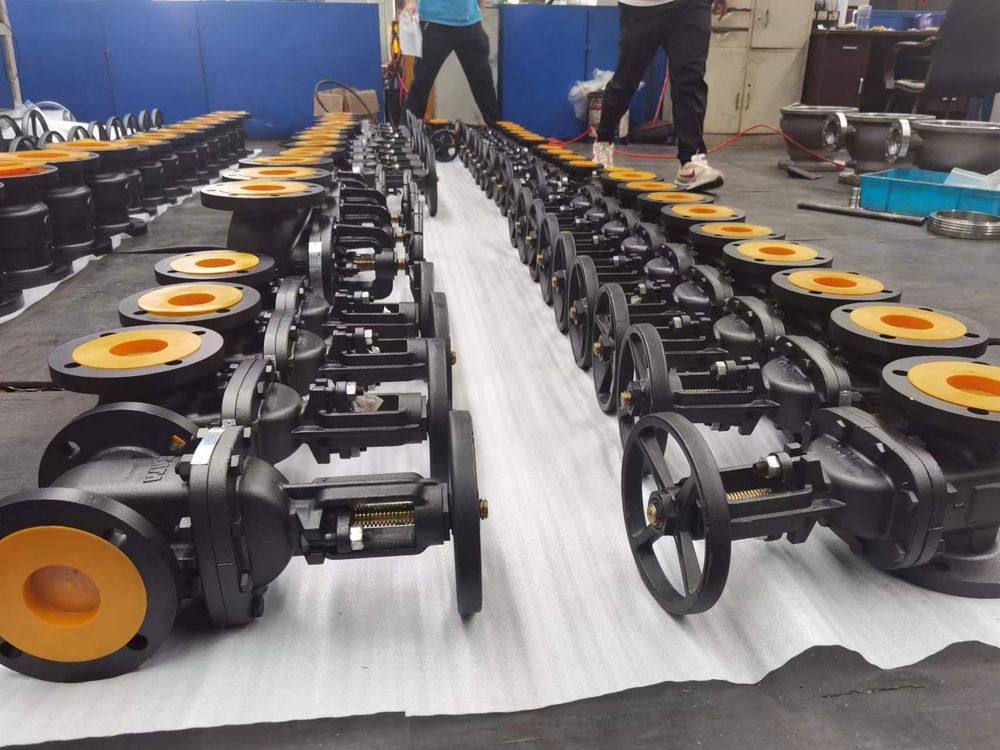

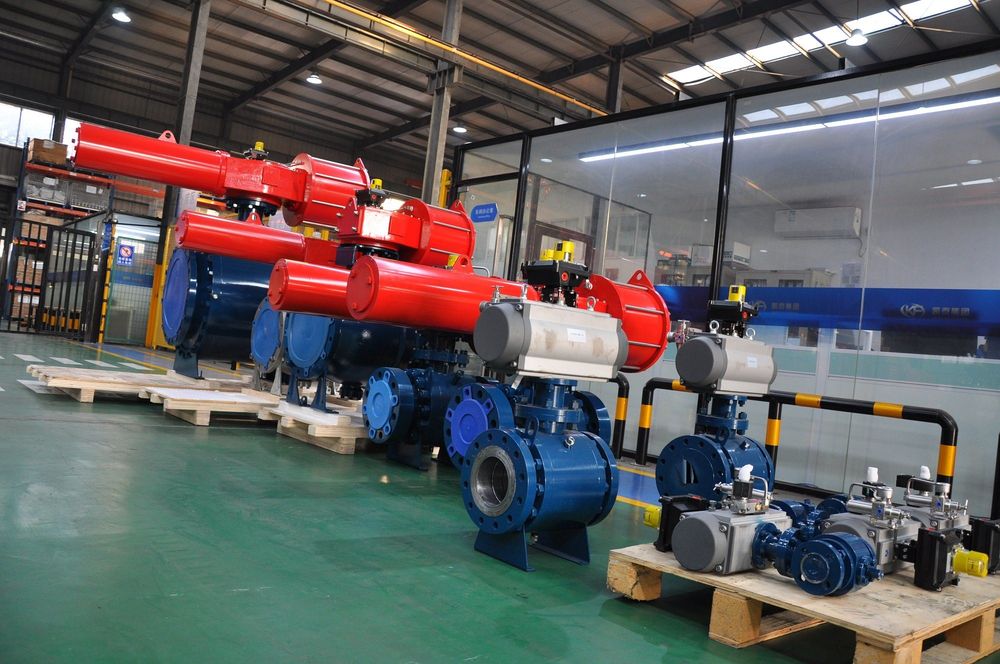

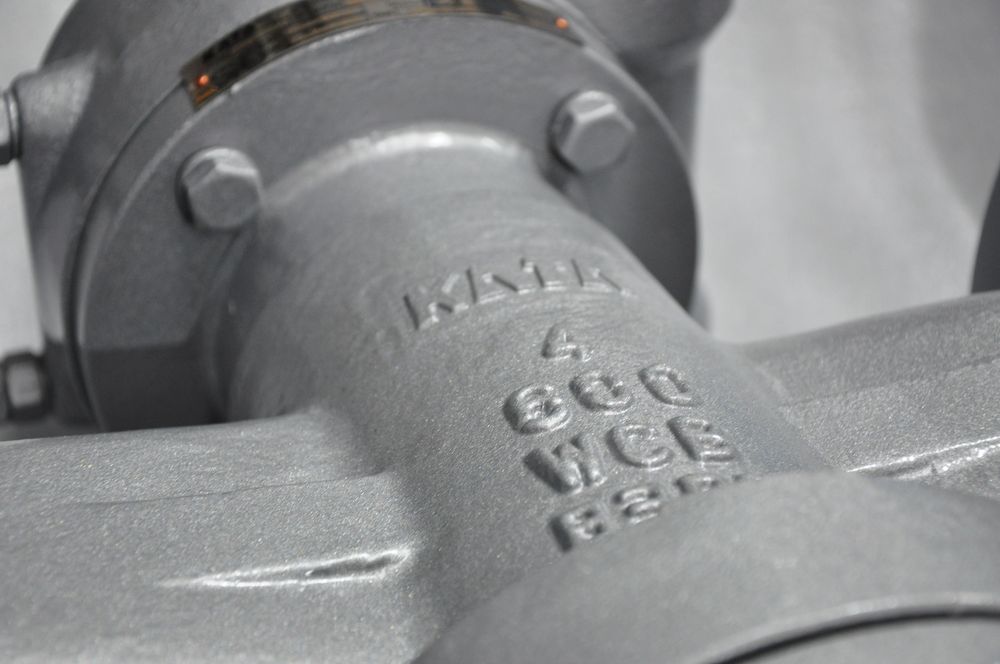

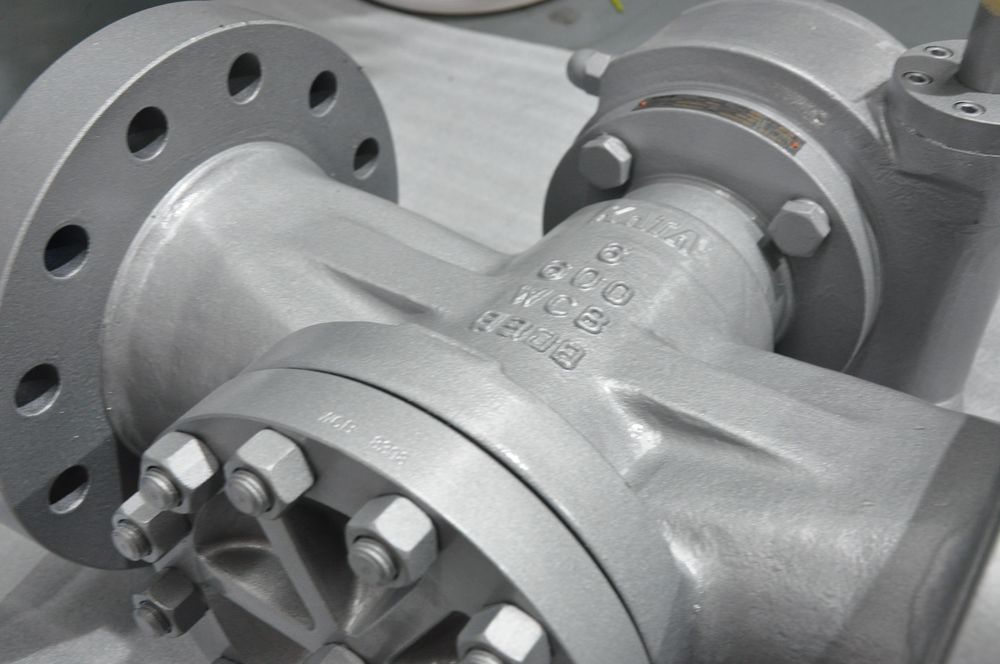

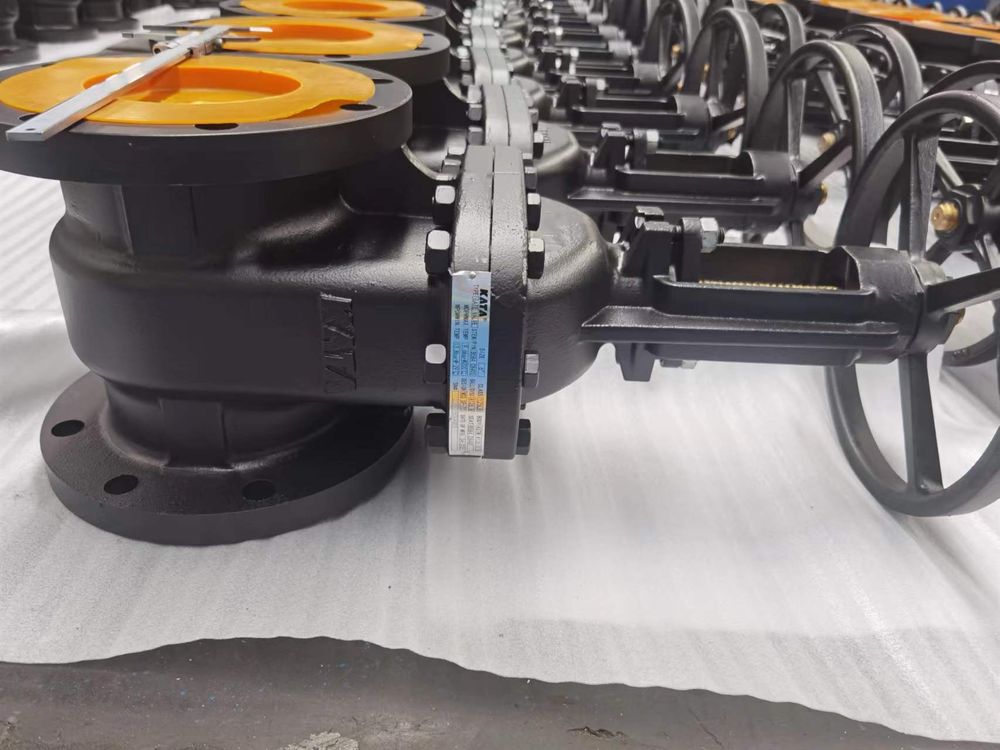

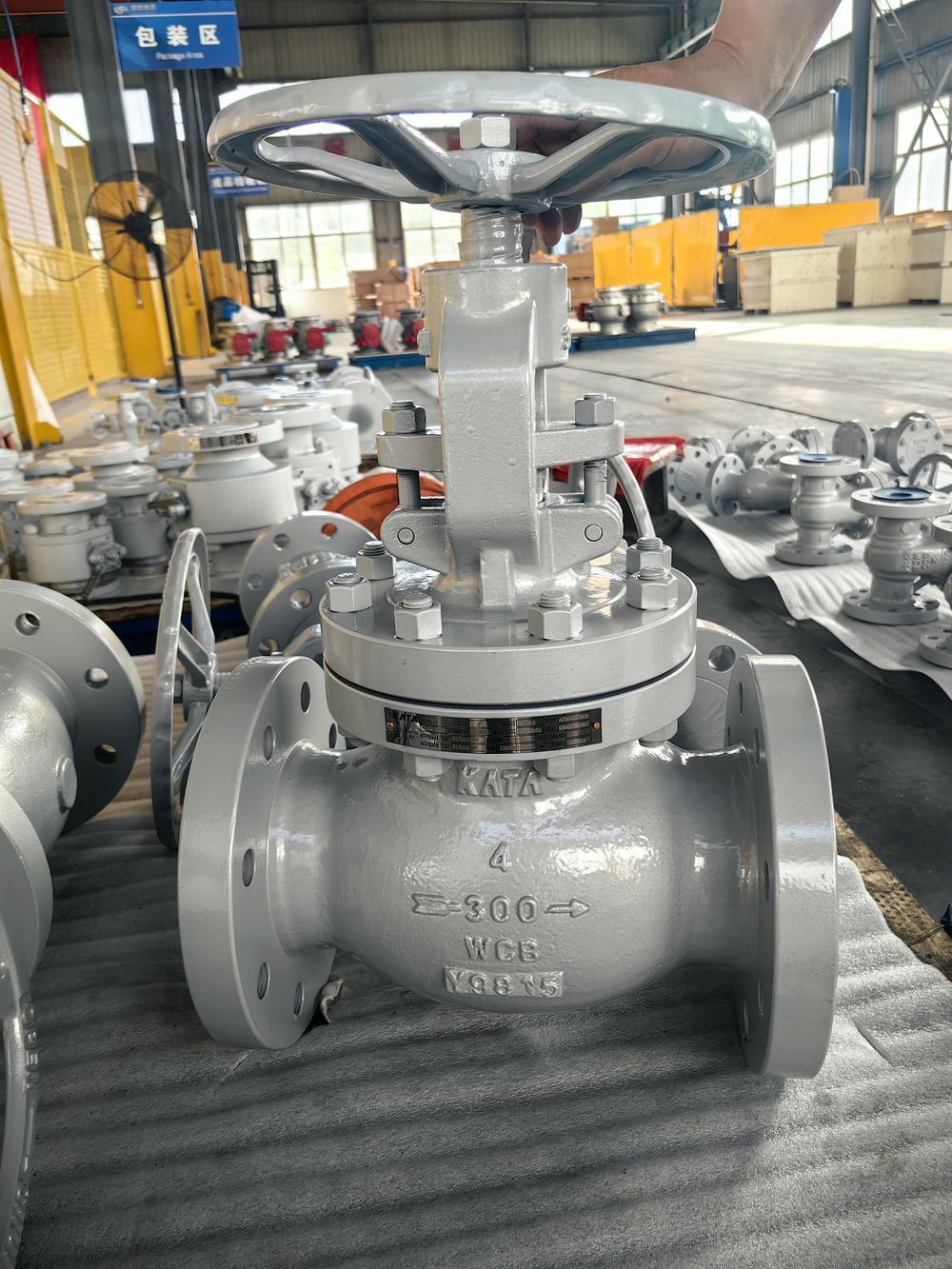

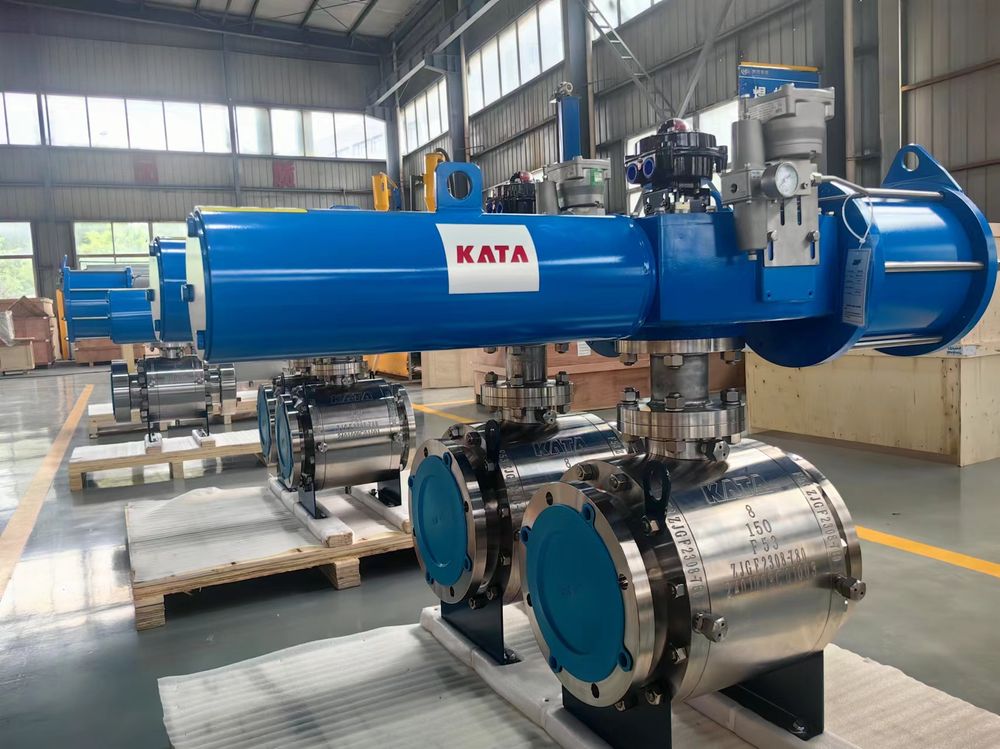

Valves in production

Real product photographs from the KATA facilities in Shanghai and Wenzhou.
